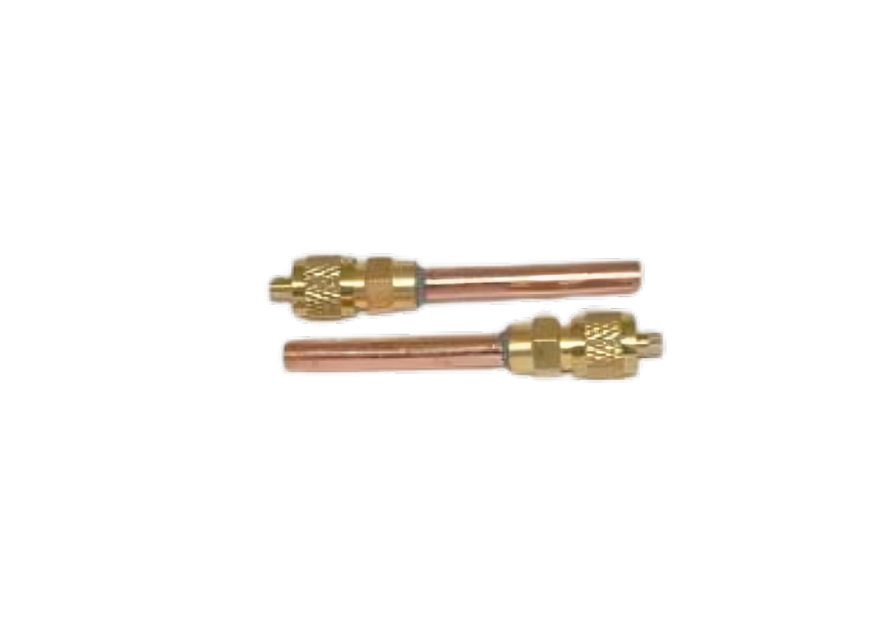

1/4” Refrigerant Charging Valve with Copper Tail
Remaining 48 only
✅ 1/4" refrigerant charging valve with copper tail – easy to weld and perfect for charging or evacuating AC systems. Compatible with R22 & R410A. Durable and leak-resistant! 💨🔩
more informationSAR 4.00
+
Earn loyalty points with this purchase
Rewardsproduct sku
HPG-CV-1-4
Weight
kg
share product
product description
This 1/4" refrigerant charging valve is designed for easy installation on suction or liquid lines. It features a forged brass body, internal Schrader core, and a copper tail ready for direct welding—making it essential for HVAC technicians and installers.
✅ Key Features
-
🔧 Standard 1/4" size – widely used in AC systems
-
🔩 Forged brass body for durability
-
💨 Comes with a replaceable Schrader core
-
🧊 Compatible with R22, R410A, R134a, R407C
-
🔥 Rated up to 700 psi pressure
-
🛠️ Weld-ready copper tail for secure installation
-
✅ Ideal for charging, evacuation, and pressure testing
📊 Technical Specifications
| Feature | Details |
| Type | Refrigerant Charging Valve (Schrader) |
| Size | 1/4 inch |
| Connection Type | Copper ODF for brazing |
| Material | Forged Brass + Schrader Core |
| Max Pressure | Up to 700 psi |
| Temp Range | -40°C to +120°C |
| Supported Gases | R22, R410A, R134a, R407C |
🛠️ Why Choose This Product?
-
Leak-proof performance under high pressure
-
Compatible with all standard charging gauges
-
Easy to install and reliable for long-term use
-
Widely used in Saudi HVAC industry
-
Perfect for field service and retrofits
🧰 Applications & Uses
-
Split AC units and HVAC systems
-
Adding or replacing refrigerant access ports
-
Charging or evacuating refrigerant
-
Pressure testing and diagnostics
📦 What’s Included?
-
1 × 1/4” charging valve with copper tail
-
Built-in Schrader core
❓ Frequently Asked Questions (within the long description)
Is it compatible with R410A systems?
✅ Yes, it’s rated up to 700 psi and supports R410A, R22, and other refrigerants.
Does it require welding?
🛠️ Yes, the copper tail is designed for direct brazing to refrigerant lines.
Can I replace the Schrader core?
🔁 Yes, the internal core is removable and replaceable with standard tools.
Is it compatible with all charging gauges?
📏 Absolutely – it uses a universal Schrader thread compatible with most HVAC tools.
Is it sold per piece or in bulk?
📦 It’s sold individually (1 piece per unit). You can select the quantity as needed.
